Solar Hybrid invertor

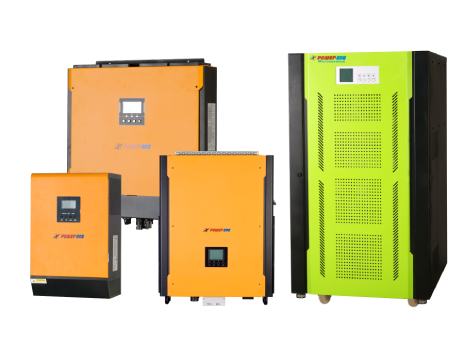

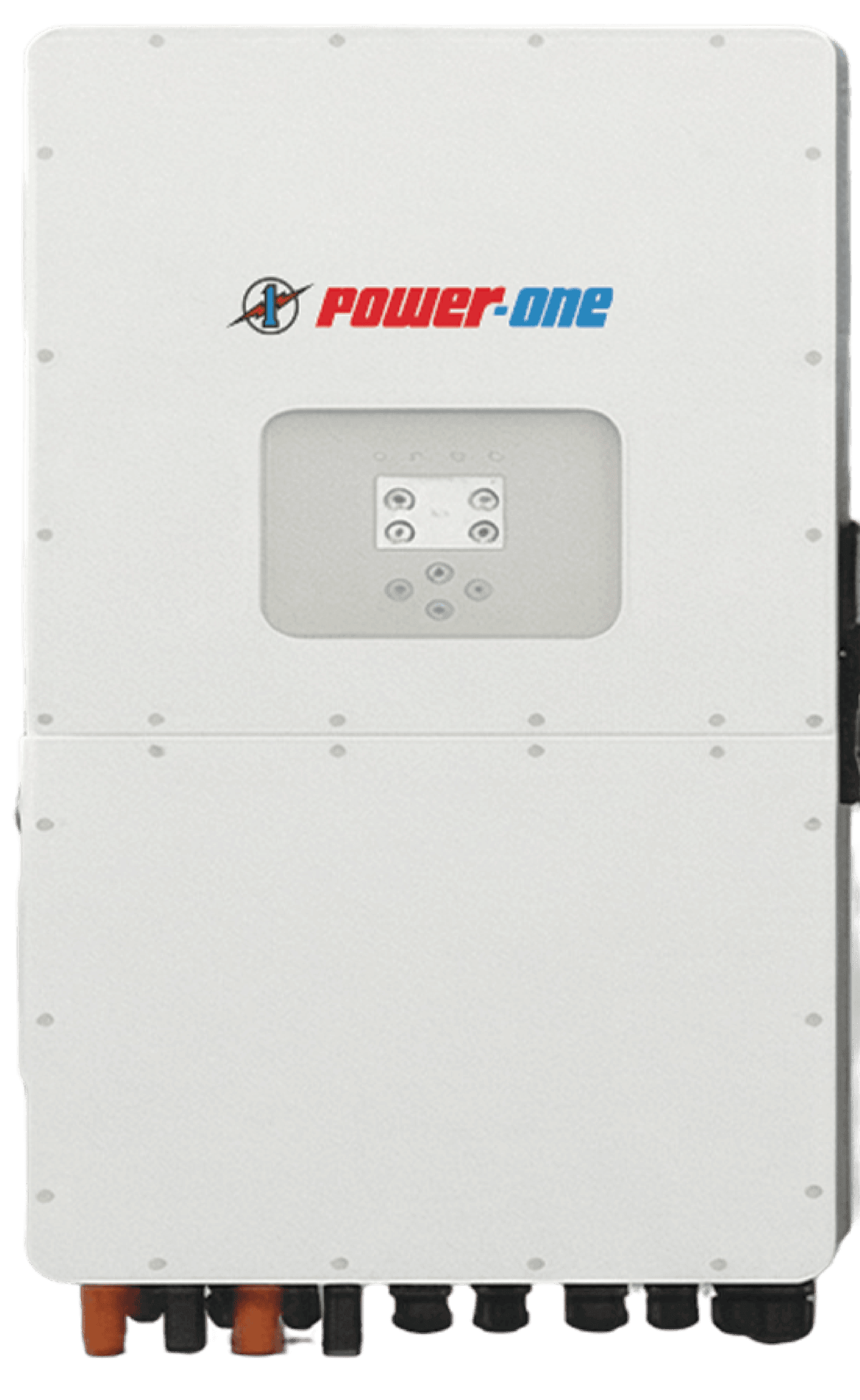

Solar Hybrid Inverters

Power-One Solar Hybrid inverters cater to your need of a sustainable and eco-friendly power backup option. A hybrid inverter typically works with a lithium battery (optionally lead acid battery) to provide a backup option and enable smart use of the battery with a time-of-use operation to reduce demand charges and reduce electricity consumption.

Power-One solar charge controllers have been designed to support large variations of isolation values which makes them suitable to operate on cloudy days as well. The integrated Maximum PowerPoint Tracking (MPPT) system will help to maintain a standard of power output from the solar panels. The DC current from the solar panels will charge the batteries which will be converted to required AC power by the inverters.

PV coupled Hybrid inverters have peak power production during mid-day. Our inverters combined with smart PLC will redirect the excess energy to the grid and allow you to gain a reduction in your monthly power bill. If you use the right-size of the battery, you can also enable full self-consumption.

Our Hybrid inverter series is suitable for use in hospitals, schools, shops, and small-scale industrial units. Smaller series Hybrid inverters are suitable to power your house in an eco-friendly way. So what are you waiting for, say goodbye to fluctuating electricity or power failures!

Please check our catalog or contact us to know more about our hybrid inverters. Technical specifications and battery sizes are mentioned in our catalog

RANGE OF PRODUCT:SGTUB Series are hybrid Inverters available in both single and three phase. The range of products in the single phase are 1/2/3/4 & 5 kW and in the three phase are 10/15/20/30 kW.

Innovative Technology

Hybrid Inverters

1 kW-5 kW (Single Phase)
10 kW-30 kW (Three Phase)
Download Download Brochure
In comparison with conventional Grid-tie inverter, Hybrid Inverter is able to export power to the grid & also store solar power to the battery for future usage and directly power to the loads in Off grid mode during grid power failure. solar-hydrid solar-hydrid solar-hydrid solar-hydrid
Salient Features
  • Pure sine wave output
  • Local load consumption and export to grid
  • Can be programmed supply priority for solar, battery or grid
  • Adjustable charging current and voltage feature
  • Programmable multiple operation modes like on-gird, off-grid and on-grid with battery backup
  • Parallel operation up to 6 units available for 3kw/4kw/5kw & 10kw models (optional)
  • Communication -RS232 Modbus, SNMP and GPRS (optional)
Techincal Specification
Capacity 1KW 2KW 3KW 4KW 5KW 10KW 15KW 20KW 30KW
Model No. SGTU 101B SGTU 102B SGTU 103B-SM SGTU 104B SGTU 105B SGTU 103B SGTU 153B SGTU 203B SGTU 303B
Rated Output Power 1000 W 2000 W 3000 W 4000 W 5000 W 10000 W 15000 W 20000 W 30000 W
Max. PV Power 1000 W 2000 W 3000 W 4000 W 5000 W 10000 W 15000 W 20000 W 30000 W
Max. PV Array Open Circuit Voltage 145 VC 900 VC
Mppt Range at Operating Voltage (VDC) 15-115 30-115 60-115 400-800 500-900
Number of Mppt 1 2 2 1 1
GRID TIE OPERATION
Nominal Output Voltage 220/ 230 /240 VC 230 V AC (P-N)/ 400 V AC(P-P)
Feed-in-Grid Voltage Range 184 - 264 V AC or 195-253 V AC (Settable) 184 - 265 V AC Per Phase (Settable)
Feed-in-Grid Frequency Range 47.5Hz - 57.5 Hz
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A 14.5A Per Phase 21.65A Per Phase 29A Per Phase 43.5A Per Phase
Power Factor >0.99
Max. Conversion Effiency (DC/ AC) 86% 90% 92.50% 93.50% 93% 95%
OFF-Grid Operation(Hybride Mode)
Acceptable Input Voltage Range 170 - 280 V AC Per Phase
Nominal Frequency 50Hz
Maximum AC Input Current/ Phase 30A 40A 40A 50A 65A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240 V AC 230 VAC (P-N)/400 VAC (P-P)
Output Waveform Pure Sine Wave
BATTERY & CHARGER
Nomial DC Voltage 12 VDC 24 VDC 48 V DC 384 V DC
Maximum Charging Current 140A 180A 200A 50A 80A
Interface
Communication (Optional) USB or RS232 / Dry-Contact / SNMP / GPRS or Modbus
