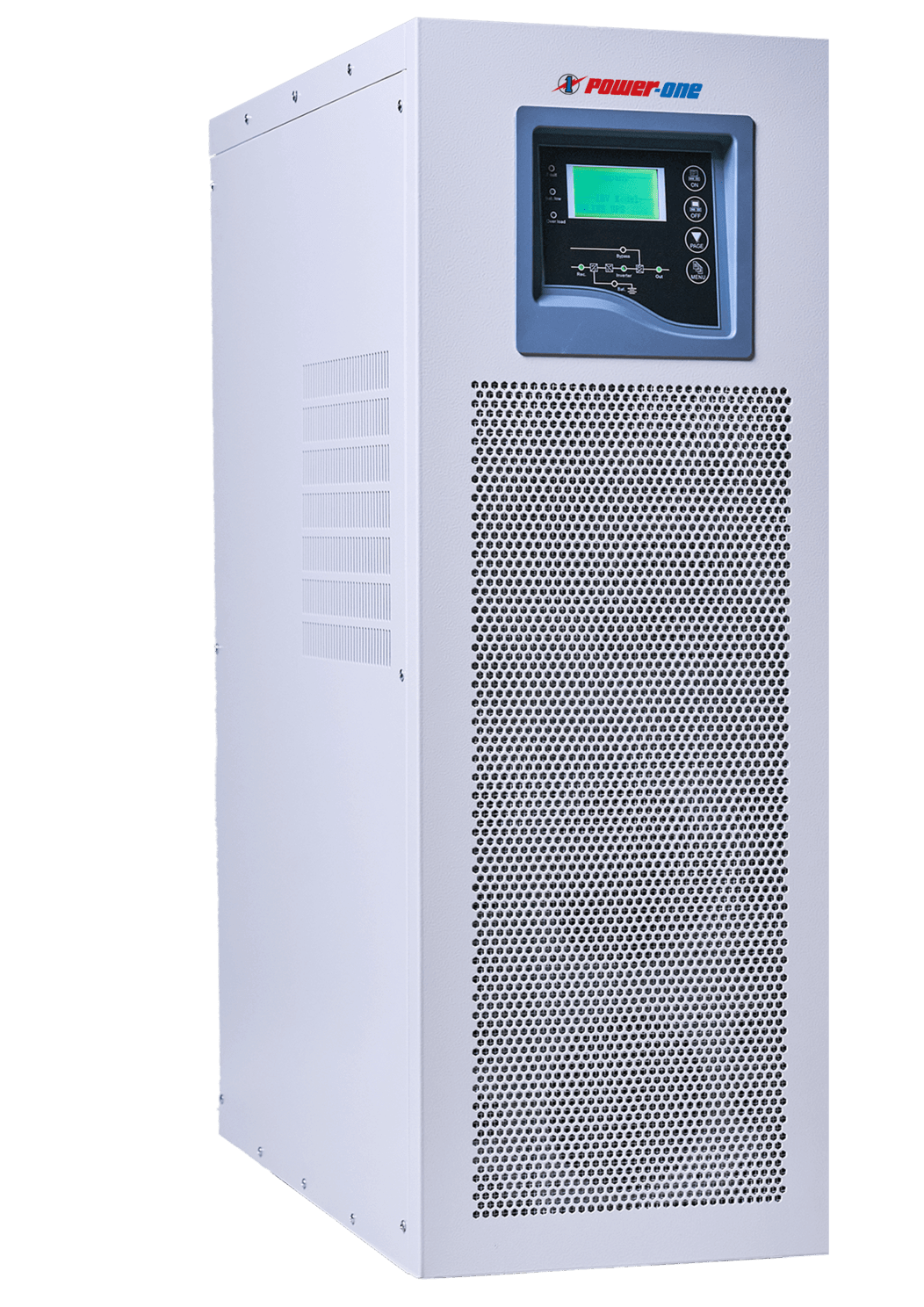

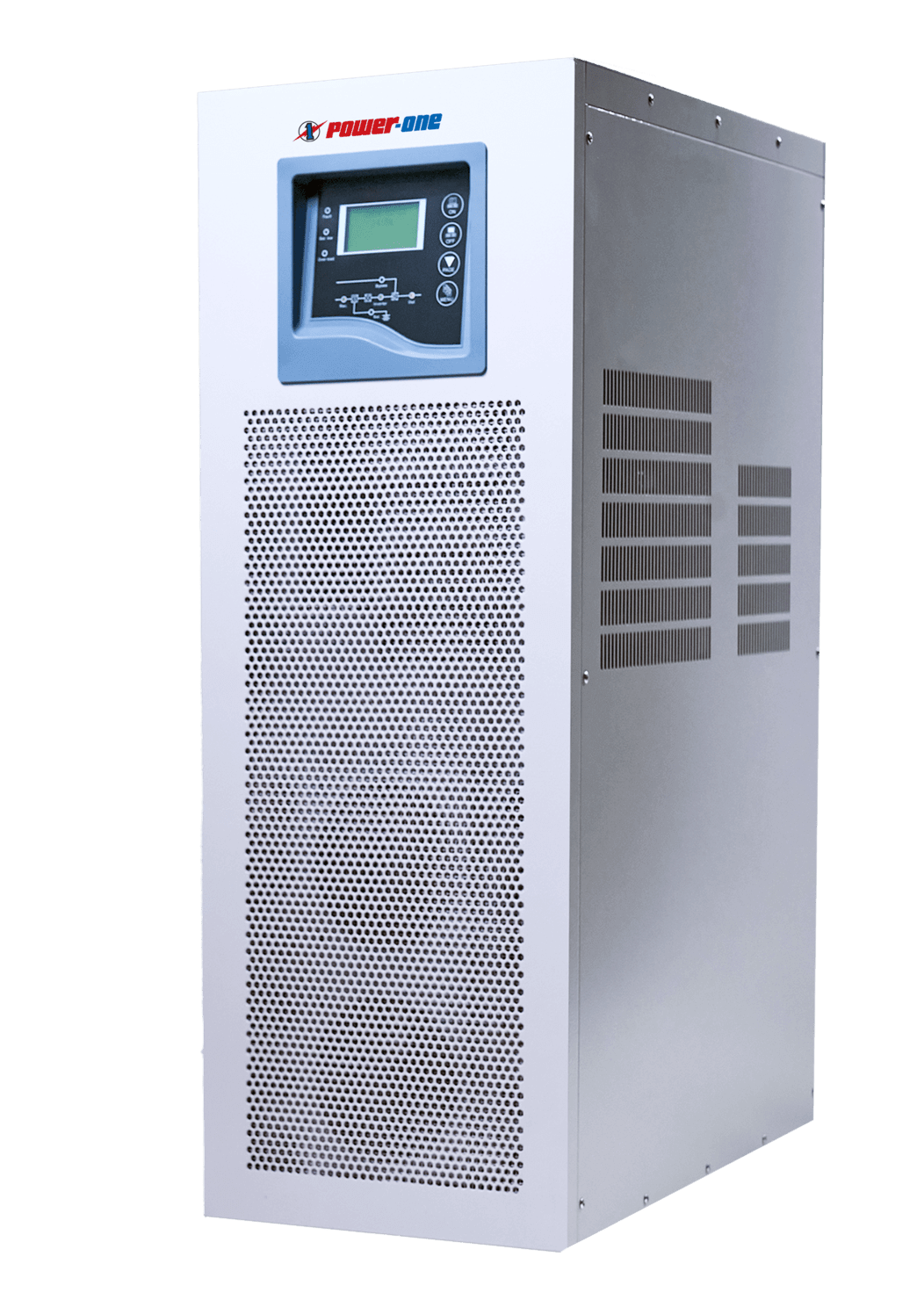

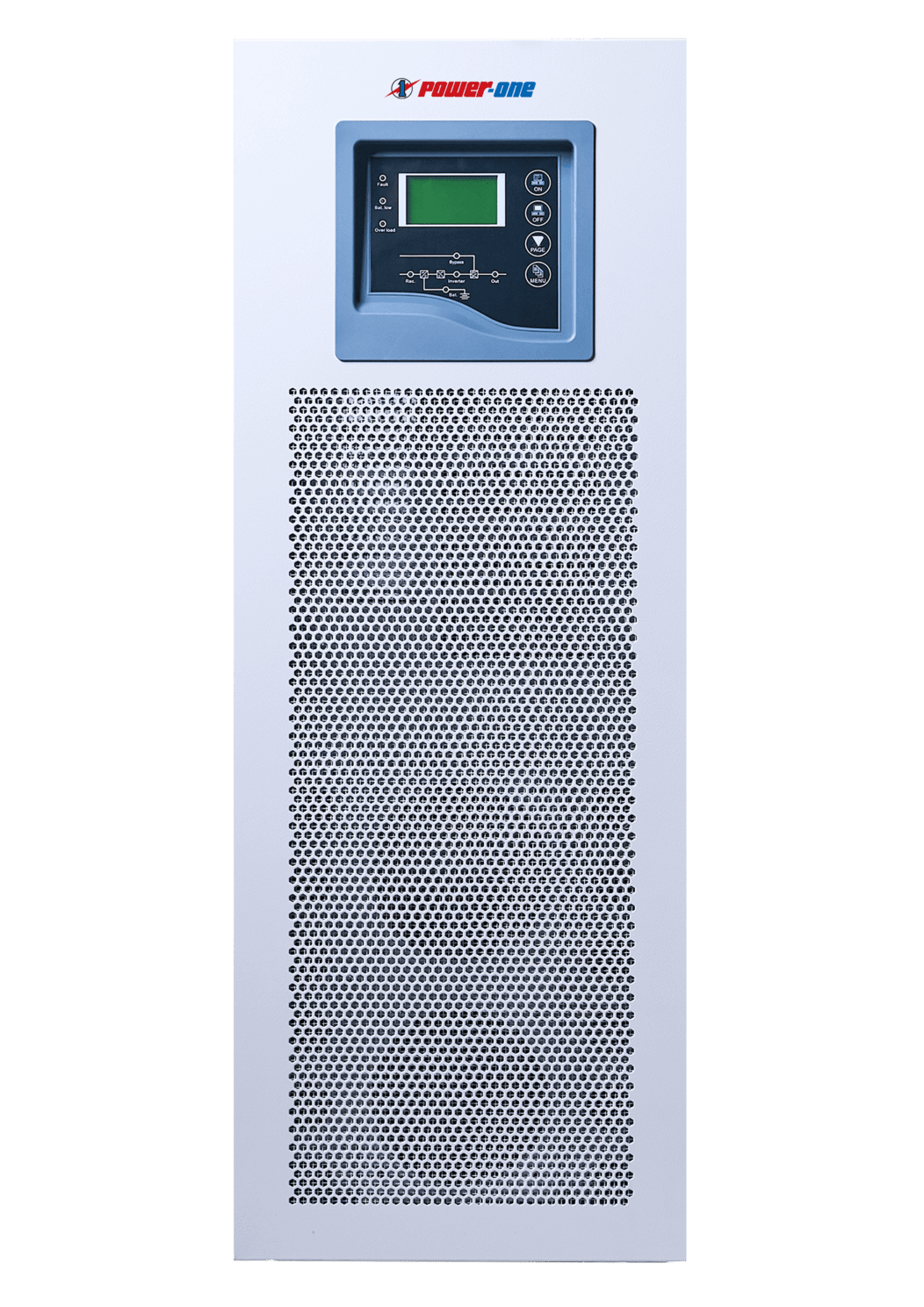

PMS Series

PMS Series is best known for robust quality and long design life and widely used for Single Phase applications to provide reliable and customizable extended power backup solutions for mission critical applications like small offices, Banking Insurance, Analytical Labs, research centres and any kind of Single-phase Industrial applications .

Digital signal processor based

Uninterruptible power supply system

5 kVA–40 kVA

Download Download Brochure
Technical Specifications
MODEL PMS PMS PMS PMS PMS PMS PMS
Capacity() 6KVA/4.8K 8K/6.4K 10K/8K 15K/12K 20K/16K 30K/24K 40K/32K
INPUT
Operating Volatage range Volatage:380V/400V/415V ±20%,(2Ph+N+PE)
OUTPUT
Ouput voltage 220Vac(±1%)
Output frequency 50/60Hz((±1%))
Power factor 0.8p.f(0.9 & Unity p.f model available Optionally)
Crest factor 3:1(max)
Efficiency >92%
Battery < 1.5%(inear load)
system features 192Vdc 240Vdc
Transfer time 0 ms(line mode->battery mode )
Overload 125% for 10 Minutes,150% for 1 Minutes
LED display Low battery voltage,Mains status,Inverter,Bypass,UPS failure,Overload
LCD display I/O voltage,Frequency,Battery voltage,Load Percentage,internal Temperature
ENVIRONMENTAL rs232,SNMP(optional),Dry contact(Optionally)
Operating Temperature 0~400 deg C(0-50 deg C available optionallly)
Storage Temperature -25 degC ~ 55 degC
Humidity range 0~95%(non-condensing)
Altitude < 1500m
PHYSICAL < 55 dB
STANDARDS 585 x 305 x 864 798 x 409 x 1044 741 x 555 x 1200 500 x 600 x 1200
SAFETY IEC/EN62040-1 ;IEC/EN60950-1
EMC IEC/EN62040-2 ;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4 IEC61000-4-5;IEC61000-4-6;IEC61000-4-8;
Optimization of high-performance battery

Adapt intelligent battery management (ABM) technology, thus it extends battery life and reduces battery maintenance time

Advanced CC( Constant current) I CV(constant voltage) auto-conversion charging technology maximizes the activation of cells, thus it saves the charging time and extending the battery life.
