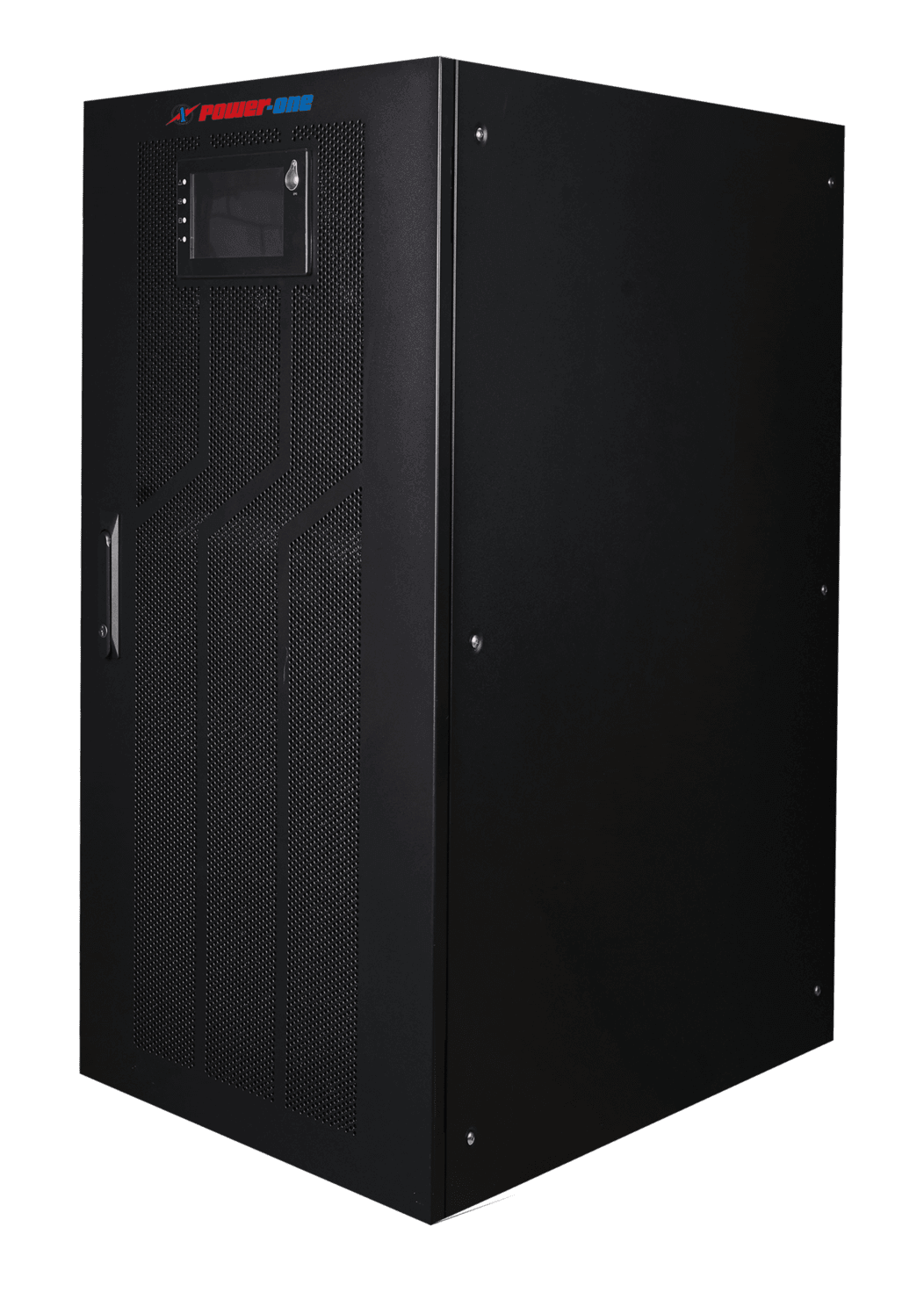

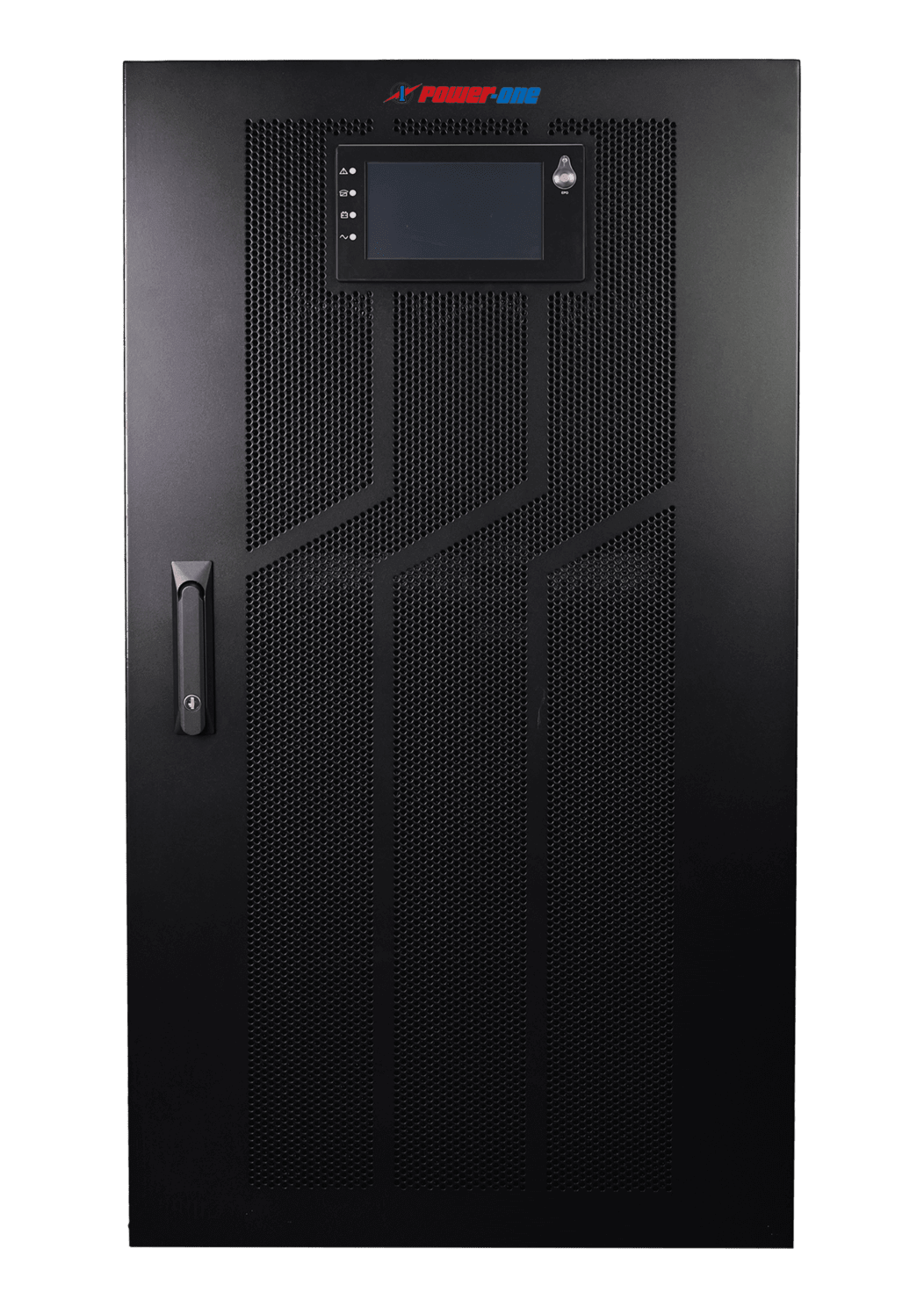

PPT IGBT Rectifier Series

RANGE OF PRODUCT: PPT Series are Three Phase UPS Systems. Available in the range of 11/15/20/30/40/60/80/100 and 120 kVA Capacity. PPT Series is an IGBT rectifier UPS with In-Built Isolation Transformer to suit all kind of Medical, Industrial and Telecom applications.

Digital signal processor based

Uninterruptible power supply system

Unity power factor module

11 kVA–160kVA
Isolation Transformer Based UPS
Download Download Brochure
The PPT Series UPS has 3 level IGBT design to deliver improved efficiency from a considerably smaller and lighter design. PPT IGBT Series UPS can achieve efficiency up to 96% in Online Mode and 99% in eco mode
PPT Series UPS’s IGBT rectifier increase Input Power factor near to Unity and allows a reduction of total input current harmonic distortion (THDi) to less than 3%. This limits harmonic emissions and enhances the electromagnetic compatibility between the source and the equipment, the UPS feeds. Unity Power Factor output ensures any type of load connection without de-rating.
The User-friendly 7” touch-screen multilingual colour graphic display which enable the user to work upon every aspect of the UPS and set the conditions. The touch Screen also allows user to watch the 1200 events recorded on a first cum first basis.
The wide DC bus bar is a new development in PPT Series UPS which can be connected from 360 to 600 VDC. This feature helps the user to increase the DC back up for his load, adding from 30 to 50 batteries. This enables PPT Series UPS as best-in-class with maximum DC flexibility.
PPT IGBT Series UPS can be paralleled up to Six units ofrated capacity and it has Inter Power Walk in facility which enable the UPS to control the interval that each UPS transfers from battery mode to normal mode, which reduces the impact on the generator or power grid. The value can be settable from 0~200ms,default value is 10ms.
Salient Features
  • IGBT Rectifier Design
  • Advanced Digital Signal Processor (DSP) controlled transformer less design
  • High Input Power Factor (>0.99)
  • Low Input current Harmonics (THDi ~ 3%)
  • High Efficiency (up to 93%)
  • Wide Input Voltage Range (-60% +25%) based on percentage of load
  • Generator compatible Operation
  • Built in Static and Manual Bypass
  • Intelligent battery management system extends the lifetime of batteries
  • Communication with computers and network systems with SNMP availability (Optional)
  • Low installation and operating costs
  • EPO (Emergency Power Off)
  • Small foot print
  • Capable of 8 times paralleling
  • High Reliable Digital Systems
Techincal Specification
INPUT
Input voltage 400VAC / 415VAC (3Ph+N)
Voltage Range 290VAC ~ 480VAC (Ph-Ph)
Frequency Range 45Hz to 55Hz
Power factor >>0.99
THDi <3%
OUTPUT
Voltage 380VAC /400VAC / 415VAC (3Ph + N)
Voltage Regulation ± 1%
Frequency 50 Hz / 60 Hz
Wave form Pure sine wave
Total Harmonic Distortion (THD) <1% (Linear load) <5% (Non Linear Load)
Phase Displacement 120°±1% (imbalances 50% of the load)
Recovery time Within 1 cycle
Overload capacity 110% for 60min ;125% for 10min ; 150% for 60 sec ; 200% for 200ms
Crest Factor 3:1
Power factor Unity
Protection Overvoltage, Undervoltage, Short Circuit, RMS Voltage Limit High Crest - Factor Current: Peak Voltage Limit
Transient Response ±5% (Dynamic Regulation for 10% to 90% step linear load)
Transient Recovery <1 cycle (Steady state condition after 10% to 90% step linear load)
BATTERY & CHARGER
Battery Type VRLA SMF / Tubular / NICAD / Lithium
Battery Numbers Adjustable from 16 to 20 Batteries up to 30kVA, 30 to 50 Batteries for 40 to 120kVA
Battery Voltage 10 to 30 kVA 196-240 VDC 40 kVA 360-600 VDC
Charging Current Battery Up to 20 Amps
STATIC BYPASS
Voltage 280 VAC ~ 470 VAC (Ph-Ph)
Transfer Time Zero
Overload 125% for 10min ; 150% for 60 sec ; 200% for 200ms
Isolation Transformer Built-In
STANDARDS
EMI 62040-1
EMC 62040-2
Performance 62040-3
Quality Standards ISO 9001,ISO 14001,ISO 45001& ISO 50001
COMMUNICATIONS
Network Managemen RS232, RS 485 MODBUS, SNMP
ENVIRONMENTAL PARAMETER
Ingress protection IP21
Operating Temperature 0- 40 °C
Humidity 0- 95 % ( Non Condensing )
Altitude 0-1500 M without derating
Color Black

PPT Series UPS has Inter sleep mode. When load is less than the set value, some of the UPS connected in Parallel mode, will turn to standby mode and if the load more than the setting value some UPS will turn to inverter mode after setting the sleep mode enable.
